The packaging industry relies heavily on polyethylene terephthalate (PET) for producing bottles due to its clarity, strength, and recyclability. Efficiently recycling this material is crucial for sustainability and economic reasons. At the heart of a modern PET bottle recycling line sits the industrial plastic shredder, a powerful machine designed to break down bulk post-consumer bottles into uniform flakes. This process of size reduction is the critical first step that prepares the material for subsequent washing, separation, and pelletizing, ultimately transforming waste into valuable raw material for new products.
Optimizing this recycling flow requires a deep understanding of how the shredder integrates with upstream and downstream equipment. A well-designed system does not operate in isolation; it is a synchronized component that dictates the efficiency and quality of the entire operation. From the initial pre-processing of baled bottles to the final step of feeding clean flakes into a pelletizer, every parameter of the shredding process must be meticulously calibrated to maximize yield, minimize energy consumption, and ensure the highest purity of the output material.
Pre-Processing Flow Design
Before PET bottles ever reach the shredder, they must undergo a series of pre-processing steps. This preparatory stage is fundamental to protecting the shredding equipment from damage and ensuring a consistent, clean feedstock. Bales of collected bottles contain various contaminants that can blunt blades, cause jams, or compromise the quality of the final recycled flake. A meticulously designed pre-processing line removes these contaminants and prepares the bottles for efficient size reduction, significantly enhancing the overall efficiency and longevity of the recycling system.
This phase involves handling large volumes of material quickly and reliably. The goal is to automate the removal of non-PET components as much as possible, reducing manual labor and minimizing the risk of mechanical failure. The effectiveness of pre-processing directly impacts the operational costs and the maintenance frequency of the primary shredder. Investing in robust pre-processing technology results in a smoother operation, higher quality output, and reduced downtime for the entire recycling plant.
Automatic Label Removal System
Most PET bottles have labels made from polypropylene (PP), polyethylene (PE), or paper, attached with adhesives. These labels are contaminants in the PET recycling stream. An automatic label removal system typically uses dry mechanical action or steam to detach and separate these labels from the bottle bodies before shredding. This is often achieved through a rotating drum with internal ribs that tumble the bottles, causing the labels to be scrubbed off and then extracted through air suction or screening.
Effective label removal is critical because shredding bottles with labels intact would result in mixed plastic flakes, significantly reducing the value and purity of the recycled PET. Efficient systems can achieve a label removal rate of over 95%. Removing labels prior to shredding also prevents the adhesive from melting and gumming up the shredder's cutting chamber or downstream washing equipment, which can lead to significant operational headaches and cleaning downtime.
Bottle Compaction Pre-Treatment
PET bottles are highly voluminous, consisting mostly of empty space. Feeding whole, uncrushed bottles directly into a shredder is highly inefficient, as the machine would spend most of its time compressing air rather than cutting material. Pre-compaction is a common step where bottles are flattened or densified using a specialized press. This process drastically reduces the volume of the material, creating a denser feedstock that can be fed continuously and evenly into the shredder.
This pre-treatment leads to a massive increase in shredding throughput and energy efficiency. A compactor can reduce the volume of loose bottles by a ratio of 10:1 or even higher. Feeding compacted material allows the shredder to operate at its optimal capacity, with the rotors consistently engaged with plastic rather than air. This results in a more stable power draw, less wear and tear on the drive system, and a significantly higher processing rate measured in tons per hour.
Metal Detection Link
Despite best efforts at collection, PET bales often contain metallic contaminants such as bottle caps, rings, small wires, or even entire aluminum cans. These metal pieces pose a severe threat to the integrity of the shredder's cutting blades and rotors, potentially causing catastrophic and expensive damage. A powerful metal detector is therefore an essential sentinel placed on the conveyor line just before the shredder infeed.
When the metal detector identifies a ferrous or non-ferrous metal object, it triggers a rejection mechanism, such as an air blast or a pusher arm, to divert the contaminated material into a separate bin for manual sorting. For finer metal separation after the primary shredding stage, an overband magnetic separator is often installed above the conveyor carrying the shredded flakes to remove any liberated ferrous metals, providing an additional layer of protection for downstream granulators and washing equipment.
Liquid Residue Cleaning
Post-consumer bottles frequently contain small amounts of leftover liquids—water, soda, or other beverages. These residues can cause several issues: they create a mess on conveyors, lead to microbial growth during storage, and dilute the chemical baths in the washing stage, increasing water treatment costs. Many modern recycling lines incorporate a rinsing or draining step early in the pre-process.
This can involve mechanically inverting and shaking bottles to eject residues or passing them through a coarse water spray rinse. The goal is not a deep clean but rather the removal of free-standing liquid. Managing liquid residue upfront prevents corrosion on equipment, reduces odor, and improves the working environment. It also ensures that the material entering the shredder is relatively dry, which improves the cutting efficiency and prevents the formation of a wet, muddy paste inside the cutting chamber.
Equipment Configuration Standards
Selecting and configuring the right shredder for PET bottle processing is a precise science. The machine must be robust enough to handle the abrasive nature of PET polymer and potential contaminants, yet precise enough to produce a consistent flake size for washing. The configuration involves a balance of mechanical power, cutting geometry, and material handling to achieve optimal performance. Standardizing these configurations allows recycling plants to predict output, plan maintenance, and ensure product quality with a high degree of reliability.
The core of this configuration lies in the interplay between the cutting mechanism, the drive system, and the containment and handling of the output material. Each parameter must be tuned for PET's specific material properties. A machine set up for shredding HDPE pipes, for instance, would not be optimally configured for PET bottles. Getting these settings right from the start minimizes energy waste, reduces wear on consumable parts, and establishes a stable foundation for the entire recycling process.
Rotor Speed Control (200-350 RPM)
Industrial shredders for PET applications operate on the principle of high torque and low speed. A controlled rotor speed, typically between 200 and 350 revolutions per minute (RPM), is essential for the tearing and shearing action required to break bottles into flakes. This slow, powerful rotation allows the cutters to grip and pull the material into the cutting zone consistently, rather than bouncing or deflecting it. Operating within this range ensures a controllable particle size and minimizes the generation of fine dust.
If the rotors spin too fast, the risk of generating excessive heat increases, which can cause the PET to soften and melt, leading to agglomerations that clog the machine's screen and discharge areas. Furthermore, higher speeds often lead to a noisier operation and accelerated wear on the cutting blades. Modern shredders are equipped with PLC-controlled drives that allow operators to fine-tune the rotor speed based on the feed rate and material condition, optimizing the process in real-time.
Screen Mesh Aperture Selection (8-12mm)
The discharge screen, or grate, is a critical component located at the bottom of the shredding chamber that controls the final size of the output flakes. The shredded material remains in the chamber until it is small enough to pass through the holes in this screen. For PET bottle recycling, the industry standard aperture size ranges from 8mm to 12mm. This size is a careful compromise: flakes must be small enough to be effectively cleaned in subsequent hot wash cycles but large enough to be efficiently separated from heavier contaminants like PVC labels or sand in float/sink tanks.
A 10mm screen is a very common choice, producing flakes that are ideal for most washing and separation systems. Selecting the correct screen size is crucial for system throughput. A screen with holes that are too small will restrict material discharge, causing the shredder to choke and reducing its processing capacity. It will also increase power consumption and wear. Conversely, a screen that is too large will produce overly coarse flakes that may not be cleaned thoroughly, compromising the final purity of the recycled PET.

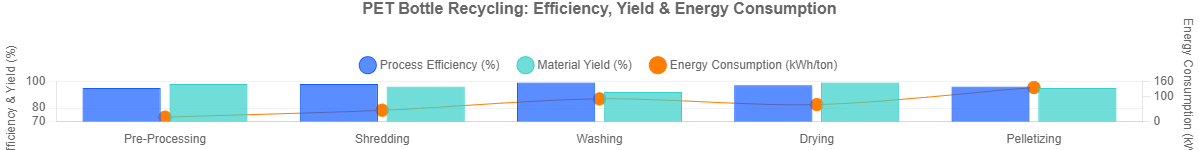

Detailed Performance Metrics
| Process Stage | Key Performance Indicator | Target Value | Energy Consumption | Environmental Compliance |
|---|---|---|---|---|
| Pre-Processing | Material Preparation Efficiency | 95% | 15-20 kWh/ton | Noise <80dB |
| Shredding | Flake Uniformity & Purity | 98% within spec | 40-50 kWh/ton | Dust <10mg/m³ |
| Washing | Contaminant Removal Rate | >99% | 80-100 kWh/ton | Water discharge compliant |
| Drying | Moisture Content | <0.02% | 60-75 kWh/ton | VOC emissions controlled |
| Pelletizing | IV Value Retention | >0.72 dL/g | 120-150 kWh/ton | No hazardous waste |
Conveyor Belt Matching Scheme
The conveyor system is the circulatory system of a recycling plant, connecting the shredder to both its upstream and downstream partners. The conveyor carrying material to the shredder must be robust, often a steel belt or a heavily reinforced rubber belt, to withstand the impact of loaded bottles or compacted blocks. Its width and speed must be matched to the shredder's maximum infeed capacity to prevent overfeeding or creating a bottleneck.
At the discharge, the conveyor carrying away the shredded flakes must be designed to handle abrasive material and often includes a magnetic head pulley to serve as a primary magnetic separator, removing any ferrous metals liberated during the shredding process. The speed and sealing of these conveyors are important to contain dust and prevent material spillage, ensuring a clean and efficient transfer of material to the next stage of the process, which is typically the washing line.
Dust Collection Unit
Shredding PET bottles, especially when they are dry, generates a significant amount of plastic dust and fine particulates. This dust poses several risks: it is a respiratory hazard for operators, can create explosive atmospheres under certain conditions, and represents a loss of valuable material. Therefore, integrating an effective dust collection system is mandatory for any industrial shredding operation.
This system typically consists of suction hoods placed at strategic points of dust generation—primarily the shredder's discharge and transfer points on conveyors. The dust-laden air is drawn through ductwork to a central collector, often a baghouse or cartridge filter unit, which captures the particulates and allows clean air to be exhausted. The collected PET dust can sometimes be recycled, though it is often considered a lower-grade material due to potential contamination.
Back-End Integration Solutions
The shredder's output is the input for the critical cleaning and refining stages of PET recycling. Therefore, its operation must be seamlessly synchronized with the back-end processes. This integration is not merely a mechanical connection of conveyors; it involves the careful management of material flow, quality, and timing to ensure that the washing, separating, and pelletizing equipment operates at its peak efficiency. A bottleneck at the shredder stage can idle the entire washing line, while inconsistent flake quality can overwhelm the sorting systems.
Successful integration requires a holistic view of the entire production line. The shredder's control system must communicate with the controllers of the downstream equipment, creating a coordinated production unit. Parameters such as flake size, discharge rate, and contamination level directly influence the performance of the hot wash, floatation, and drying systems. Optimizing this interface is key to achieving a high yield of pure, food-grade recycled PET (rPET) at the lowest possible operational cost.
Hot Wash System Connection Parameters
The shredded PET flakes proceed directly to a hot wash system, where they are cleaned using heated water and detergents to remove labels, adhesives, and other contaminants. The integration between the shredder discharge and the wash tank infeed must be designed to maintain a consistent and controlled feed rate. An overloaded wash tank will not clean effectively, while an underfed one operates inefficiently.
The conveyor from the shredder often feeds into a submerged drag conveyor or a pump that introduces the flakes into the wash tank. The shredder's output rate must be calibrated to match the capacity of the wash system, which is typically measured in tons per hour. Modern plants use PLC systems to monitor the level in the wash tank and adjust the shredder's feed conveyor speed accordingly, creating a closed-loop system that ensures optimal loading for the washers.
Compatibility with Flotation Separation Equipment
After washing, the clean PET flakes are separated from contaminants like PP, PE, and PVC using a浮选 (flotation) tank. In this process, PET sinks while other plastics float. The efficiency of this separation is highly dependent on the consistency of the shredder's output. The flakes must be of a uniform size and shape to ensure they behave predictably in the water. If the shredder produces too many fines or irregularly shaped particles, the separation efficiency will drop, leading to PET loss with the floaters or contamination of the PET sink fraction.
Furthermore, the shredder must effectively liberate contaminants from the PET. For example, if PVC labels are not fully separated from the PET flakes during shredding, they will report to the sink fraction and contaminate the final PET product. Therefore, the shredder's ability to produce clean, well-liberated flakes is just as important as the flotation process itself in determining the final product purity.
Drying System Matching Requirements
After washing and flotation, the PET flakes are saturated with water and must be thoroughly dried before they can be fed into a pelletizing extruder. The shredder's role in this integration is indirect but important. The size and shape of the flakes influence the drying efficiency. Consistent, uniform flakes from the shredder allow for even airflow and heat transfer in the dryer, resulting in a uniform moisture content.
If the shredder produces a wide range of particle sizes, the fines will dry much faster than the larger flakes, potentially leading to overheating and degradation of the fines before the large flakes are dry. This can cause yellowing and a loss of intrinsic viscosity (IV) in the material, reducing its quality. Therefore, a well-configured shredder that produces a tight distribution of flake sizes is a prerequisite for efficient and gentle drying.
Pelletizer Feed Control
The final step in the recycling process is melting, filtering, and extruding the dried flakes into pellets. This is typically done by a large extruder, which requires a very consistent and steady feed of material to operate stably. The shredder lays the groundwork for this by producing flakes that can be easily handled by the pelletizer's feeding system, usually a vacuum conveyor or a screw feeder.
Bulk density is a key property here. The shredder must produce flakes that have a consistent and predictable bulk density so the feeder can deliver a consistent mass flow rate to the extruder. Flakes that are too large or too light can cause bridging in the feed hopper, interrupting the flow. The goal of the entire shredding and preparation process is to deliver a clean, dry, and consistent flake that allows the pelletizer to run continuously at its designed capacity, producing high-quality rPET pellets.
Quality Control Points
Producing recycled PET that meets the stringent requirements for food-grade packaging demands rigorous quality control throughout the process, starting with the shredding operation. The quality of the flake directly determines the quality of the final pellet. Key parameters must be constantly monitored and controlled to ensure the output is consistent and meets the specifications of downstream buyers. This focus on quality is what separates a high-value recycling operation from a simple volume reduction service.
Quality control is not just a final inspection; it is an integrated part of the production process. It involves automated sensors, manual sampling, and laboratory analysis. Data from these checks are used to make real-time adjustments to the shredder and other equipment. Maintaining tight control over flake quality minimizes reprocessing, reduces yield loss, and ensures the product commands the highest possible price in the market.
Particle Size Distribution Control (<5% Oversized)
A tight particle size distribution is paramount for efficient downstream processing. The target is to have over 95% of the output flakes within the specified range, typically 8-12mm. Oversized flakes (>12mm) will not be cleaned effectively in the wash and may not melt uniformly in the extruder, leading to filtration problems and potential defects in the final pellet. Most shredders use a discharge screen to control the maximum size, but the proportion of fines (<2mm) must also be minimized.
Excessive fines are a sign of an overly aggressive or misconfigured shredding process. They represent a loss of material yield, as they are often washed away with wastewater or removed by air classifiers. Furthermore, fines can create dust explosions hazards and increase the load on the dust collection system. Regular sieving analysis of the output flake is performed to monitor the size distribution and adjust the shredder's operation accordingly.
Impurity Content Detection (PVC<0.1%)
Polyvinyl chloride (PVC) is the most critical contaminant in PET recycling. Even very small amounts of PVC—as low as 50 parts per million (ppm)—can degrade the entire batch of rPET during the high-temperature extrusion process, causing yellowing and embrittlement. PVC has a similar density to PET, making it difficult to separate in浮选 tanks. Therefore, it must be identified and removed as early as possible.
While pre-sorting aims to remove PVC bottles, small fragments and labels can remain. After shredding, automated detection systems using near-infrared (NIR) spectroscopy or laser technology are often used to scan the flake stream on a conveyor. These sensors can identify PVC contaminants and trigger air ejectors to remove them. The stringent target of less than 0.1% PVC content is essential for producing food-contact grade rPET.
Moisture Content Control (<2%)
Before pelletizing, the dried PET flakes must have a very low moisture content. PET is hygroscopic, meaning it absorbs water from the atmosphere. If processed with too much moisture, the water hydrolyzes the polymer chains during extrusion, reducing the molecular weight and intrinsic viscosity (IV) of the material, which weakens the final product. The industry standard is to dry flakes to a moisture content of less than 2% before they enter the pelletizing extruder.
The shredding process itself does not dry the material, but it influences the drying efficiency. Consistent flake size allows the dryer to operate at optimal parameters, ensuring all flakes are dried evenly without some being over-dried and degraded while others remain wet. The moisture content is continuously monitored using in-line sensors after the dryer to provide feedback for controlling the dryer's temperature and residence time.
Color Sorting Requirements
Post-consumer PET streams come in a mix of colors: clear, blue, green, and other tints. For high-value applications, especially clear food packaging, the feedstock must be color-sorted to produce a consistent product. Color sorting typically happens after the flakes have been washed and dried. High-speed optical sorters use cameras and air jets to separate flakes by color, diverting colored flakes into different streams.
The shredder contributes to this process by producing flakes with consistent shapes and clean surfaces. Flakes that are folded, twisted, or covered in residue can trick the optical sorter, causing mis-sorts and reducing the purity of the color-sorted output. A clean, well-defined flake from the shredder allows the optical sorter to operate at its highest accuracy and efficiency, maximizing the yield of valuable clear PET flake.
Energy Optimization Strategies
The operation of an industrial shredder and its associated systems is energy-intensive. With rising electricity costs and a strong focus on reducing the carbon footprint of recycling, implementing energy optimization strategies is both an economic and environmental imperative. These strategies involve adopting high-efficiency technologies, smart control systems, and operational practices that reduce power consumption without compromising throughput or product quality.
Energy optimization is a holistic effort that looks at the entire system, not just the shredder's motor. It involves recovering waste energy, shifting load to off-peak hours, and ensuring that equipment only runs when it is actively processing material. A focus on energy efficiency directly lowers the operating cost per ton of material processed, making the recycling operation more competitive and sustainable in the long term.
Variable Frequency Drive (VFD) Technology Application
A Variable Frequency Drive (VFD) is an essential component for optimizing the energy consumption of a shredder's main drive motor. Instead of running the motor at a constant speed, a VFD allows the motor's speed and torque to be precisely controlled based on the actual load in the cutting chamber. When the feed material is light or sporadic, the VFD can reduce the motor speed, significantly lowering power consumption.
During start-up, the VFD provides a "soft start," ramping up the motor smoothly instead of drawing a massive inrush current. This reduces stress on the electrical grid and mechanical components. Furthermore, the torque-control capabilities of a modern VFD can help prevent jams by automatically adjusting power to overcome tough spots without tripping the motor. The integration of a VFD is managed through the shredder's main PLC control panel, making it a central part of an intelligent energy management system.
Waste Heat Recovery System Design
Industrial shredders convert electrical energy into mechanical energy for cutting, and a significant portion of this energy is ultimately transformed into heat through friction. This waste heat can be recovered and utilized elsewhere in the recycling plant. For example, a closed-loop water cooling system can be installed to circulate water through channels in the shredder's bearing housings or gearbox. This heated water can then be passed through a heat exchanger to warm fresh water destined for the hot wash tanks.
By pre-heating the wash water with waste heat from the shredder, the plant reduces the energy required by its primary water heaters (often gas-fired or electric). This cross-system integration turns a waste product (heat) into a valuable resource, lowering the overall energy footprint of the operation. While there is an initial capital cost for the heat exchange system, the payback period can be attractive due to the continuous savings in heating energy.
Intelligent Start-Stop Control
An idling shredder consumes a significant amount of energy even when no material is being processed. Intelligent start-stop control systems use sensors on the infeed conveyor to detect the presence of material. If the conveyor is empty for a pre-set period, the system signals the shredder to enter a low-power standby mode or shut down completely. When material is detected again, the system automatically restarts the shredder.
This strategy is highly effective in batch operations or lines with variable feed rates. It prevents energy from being wasted during natural pauses in production. The restart sequence is designed to be smooth and controlled to avoid excessive wear on the electrical and mechanical components. This smart automation ensures that energy is consumed only when it is directly contributing to the production process.
Peak and Off-Peak Electricity Tariff Utilization
In many regions, electricity utilities charge higher rates during periods of peak demand (peak hours) and lower rates during nights and weekends (off-peak hours). Energy-conscious recycling plants can schedule their most energy-intensive operations, like shredding, to run during off-peak hours. This often involves using a large storage bunker or silo to hold baled material during the day.
The shredder then operates at night, consuming lower-cost electricity to process the stored material and fill up the flake storage silos that feed the washing line, which runs continuously. This simple scheduling strategy can lead to substantial reductions in the electricity bill without requiring any capital investment in new equipment. It requires careful planning of material logistics and production scheduling but offers a direct and significant financial return.
Environmental Compliance Requirements
Operating an industrial recycling facility is subject to a wide range of environmental regulations designed to protect air quality, water resources, and community health. Compliance is not optional; it is a legal requirement and a social responsibility. These regulations govern emissions, waste handling, and operational noise. Proactively designing the shredding and recycling system to meet or exceed these requirements from the start avoids costly fines, operational shutdowns, and reputational damage.
Modern recycling plants are often seen as environmental solutions, and their operations must reflect this ethos. This means going beyond mere compliance and embracing best practices in environmental management. This includes implementing advanced filtration, treating process water, and responsibly handling all waste streams generated by the operation itself. A transparent and responsible approach to environmental compliance is key to obtaining and maintaining the necessary permits to operate and building trust with the local community.
Dust Emission Standards (<10mg/m³)
Industrial shredding generates airborne particulates, and regulatory agencies strictly limit the concentration of dust that can be emitted from a facility. The European Union's Industrial Emissions Directive, for example, often sets a limit of less than 10 milligrams per cubic meter (mg/m³) for dust emissions. Meeting this stringent standard requires a highly efficient dust collection system, typically a baghouse filter with high-efficiency filter bags.
The system must be properly sized to handle the total air volume generated by all dust points—shredder discharge, conveyor transfers, and screening stations. The captured dust must be disposed of as industrial waste, often in sealed containers to prevent secondary emissions. Regular maintenance, including checking for leaks in ductwork and replacing filter bags, is essential to ensure the system continues to operate within permitted emission levels at all times.
Noise Control (<80dB)
Industrial shredders are significant sources of noise, which can impact workers and the surrounding community. Regulations typically mandate that noise at the property boundary of the plant must not exceed a certain level, often around 60-65 dB(A). To achieve this, the noise at the source must be controlled. Enclosing the shredder in a acoustic soundproof enclosure is the most effective method, potentially reducing noise emission by 20-30 dB.
Additional measures include installing acoustic damping panels on walls and ceilings, using sound-attenuating materials on conveyors and chutes, and ensuring all equipment is properly maintained to prevent noise from worn bearings or unbalanced rotors. Protecting worker hearing is also paramount, requiring the provision of hearing protection and the creation of designated quiet areas within the facility. Effective noise control is a critical aspect of being a good neighbor in an industrial area.
Wastewater Treatment Solution
The hot wash process produces wastewater contaminated with dirt, label fragments, adhesives, and detergents. This water cannot be discharged directly into the sewer system. An on-site wastewater treatment plant is therefore a standard part of a PET recycling facility. The treatment process typically involves screening to remove solids, sedimentation, flocculation, and biological treatment to break down organic contaminants.
The goal is to clean the water to a standard where it can be either discharged according to permit requirements or, ideally, recycled back into the washing process itself. Water recycling significantly reduces the plant's freshwater consumption and sewer discharge fees. Managing the wastewater stream responsibly is one of the most complex and important aspects of environmental compliance for a PET bottle recycling plant.
Solid Waste Disposal Standards
Not everything that enters a recycling plant becomes a new product. The process generates its own waste streams, including rejected materials, collected dust, sludge from water treatment, and used equipment parts like worn-out blades. This solid waste must be characterized, stored, and disposed of according to strict regulations. Non-hazardous waste can often be sent to a licensed landfill, while certain streams may be classified as hazardous and require special handling.
A waste management plan must be in place to track the types and quantities of waste generated and ensure they are handled by licensed waste disposal contractors. The principles of the waste hierarchy still apply: the plant should first seek to minimize waste generation, then explore opportunities for recycling its own waste (e.g., some sludge may be compostable), and only then resort to disposal. Proper record-keeping is essential for demonstrating compliance during regulatory inspections.
