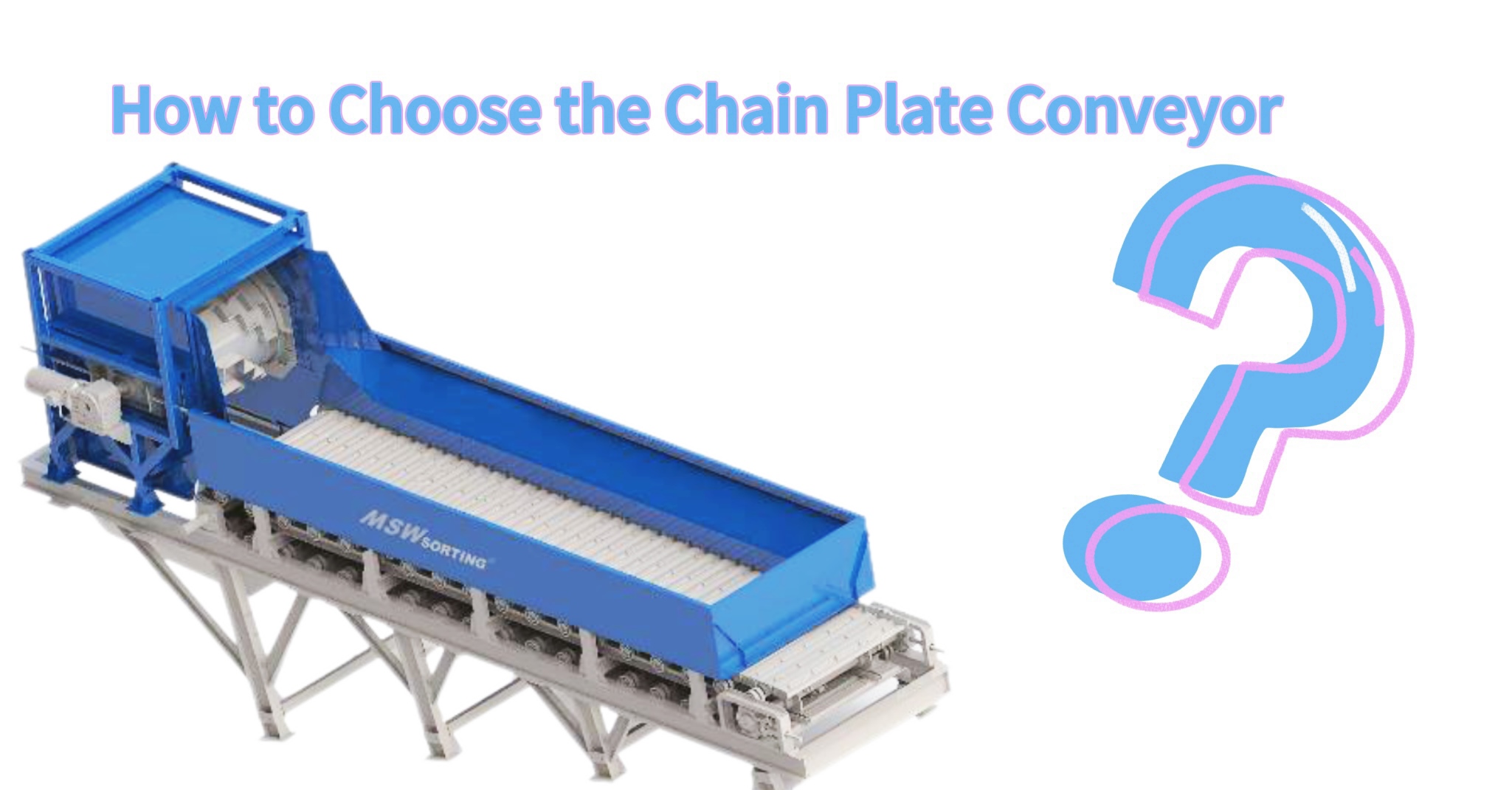

The Conveyor Chain Feeder is the silent workhorse that bridges the storage pile and the powerful Shredder in every modern waste-processing line. If it runs too slowly, the Shredder starves and valuable minutes are lost; if it rushes, the blades jam and downtime skyrockets. Choosing the correct feeder therefore decides whether the whole plant hums along smoothly or limps from one breakdown to the next.
Most first-time buyers look only at price and capacity, yet the real questions are subtler. How heavy is the heaviest lump that might fall onto the belt? Will corrosive chemicals drip from leaking batteries? How many tonnes per hour must pass through for the project to stay profitable? Answering these points in advance keeps both operating costs and headaches far lower over the years ahead.
Define Project Needs: Waste Type and Scale Shape the Basic Configuration
Before any catalogue is opened, the characteristics of the incoming waste must be mapped with almost medical precision. Light, bulky plastics float and slide, so the plates must grip them firmly and resist abrasive dust. Dense metal off-cuts pound the surface like hammers, demanding thicker manganese steel or even chromium carbide overlays. Wood pallets splinter and jam narrow gaps, while electronic scrap hides sharp screws that can shred ordinary rubber belts within days.
Scale is equally decisive. A small community plant handling twenty tonnes per day can tolerate modest speeds and lighter frames, but a regional facility aiming for two hundred tonnes needs a feeder that never chokes under surge loads. Sizing too conservatively forces costly retrofits, while oversizing burns extra electricity every single hour. The safest method is to benchmark against identical waste streams already running elsewhere, then add a twenty percent buffer for seasonal peaks.
Waste-Type Analysis: Matching the Feeder to Everything from Light Plastics to Heavy Metals
Light plastics and films behave almost like liquids, flowing unpredictably and creating air pockets under the chain. A feeder designed for them uses closely spaced cleats and textured plates to keep the material from sliding backward. In contrast, a feeder expected to receive dense steel punchings needs reinforced cross-bars that can absorb the impact energy without permanent deformation. The chain links themselves may look similar, but the metallurgy, heat treatment and thickness can differ dramatically between the two applications.
Oversized objects such as discarded sofas or refrigerator shells introduce another layer of complexity. If the throat of the downstream Shredder is only a metre wide, the feeder must either reject or pre-break anything larger, or the entire line will stall. Some operators install a short section of grizzly bars above the feeder to scalp off bulky items, while others rely on hydraulic rams to nudge awkward loads into the cutting chamber. Finally, corrosive loads like acid-soaked rags or chemical drums attack standard carbon steel within months. Stainless-steel plates or polymer-lined troughs are essential here, even though they raise the initial purchase price by up to thirty percent. Over a five-year horizon, however, the reduced maintenance and longer service life more than repay the extra investment. These oversized objects are typical of solid waste processing scenarios.
Quantifying Throughput: Capacity Matching Is the Core Metric
The daily tonnage target is more than a headline figure; it is the starting point of every dimensional calculation for the Conveyor Chain Feeder. Engineers first convert the required tonnes per day into tonnes per hour, then introduce a surge factor that typically ranges from 1.2 to 1.4 to cover unpredictable peaks such as holiday packaging waves. Once the steady-state rate is known, the belt speed and plate width must be adjusted so that the feeder neither starves nor floods the downstream Shredder. A slower belt reduces wear but can create bottlenecks, while a faster belt may fling light plastics over the side guards and waste valuable material. The sweet spot is found by iteratively balancing volumetric flow, bulk density and the time it takes a single plate to travel from tail drum to discharge point.
Continuous operation over two or even three shifts places equally strict demands on motor sizing and thermal management. Standard asynchronous motors may suffice for eight-hour service, yet twenty-four-hour schedules call for premium-efficiency units coupled with forced-air or liquid cooling jackets. Peak-load events, such as a sudden influx of demolition debris after a festival, can momentarily double the torque requirement. Some plants address this by installing dual-chain-plate feeders running in parallel: during normal periods only one unit operates, but both can be activated instantly when sensors detect a surge, ensuring that no truck idles in the queue and that the Shredder continues to receive a steady, controlled feed. This is particularly critical for processing lines handling RDF.
Site Space and Layout: Compact or Expandable?
Whether the feeder sits inside a purpose-built hall or under an open canopy dictates the entire envelope of the design. Indoor installations benefit from natural shelter but demand tighter dust-extraction connections, low-noise gearboxes and fire-suppression nozzles aimed at the belt surface. Outdoor units, on the other hand, must be rated IP65 or higher to withstand driving rain, and all bearings are specified with triple-lip seals to keep fine grit from reaching the grease. The same environmental shielding that protects the equipment also influences the footprint: a fully enclosed feeder is necessarily taller and longer, whereas an open-frame unit can be squeezed into narrow gaps between existing bins.
The maximum recommended incline of 15° is not a random number; it reflects the point at which many mixed wastes begin to avalanche backward under their own weight. A gentler slope offers greater safety but consumes more floor space, while a steeper angle frees up square metres yet may require textured plates or cleats to maintain grip. Interface standardisation with the downstream Shredder is equally critical. The feeder discharge height and width must align precisely with the Shredder hopper flange, and adjustable support legs allow on-site fine-tuning to within a few millimetres. When the day arrives to scale up throughput, modular extensions—additional plate sections, longer side skirts, and plug-and-play drive frames—can be bolted on without welding or major civil works, turning a once-compact line into an expandable processing centre.
Technical Deep-Dive: From Chain Plate Design to Drive System Choices
Core content: The selection of suppliers should comprehensively consider industry experience, after-sales capabilities and cost-effectiveness to avoid project delays or equipment performance substandard due to insufficient supplier qualifications.
Plate Material & Structure: Balancing Strength and Cost
When engineers open a catalogue of chain plates, they immediately face a three-way trade-off between upfront price, mechanical strength and corrosion resistance. Carbon-steel plates, typically 8–20 mm thick, offer the lowest initial cost and a predictable linear relationship between thickness and load-bearing capacity. Each extra millimetre adds roughly 8 % more tensile strength, but it also increases weight and power draw by a similar margin. Stainless-steel plates step in when aggressive chemicals or salty air are expected; the chromium content prevents rust even after years of exposure to battery electrolytes or metal-cutting coolants, yet the material price can be 2.5 times higher. Polymer plates, made from ultra-high-molecular-weight polyethylene, are surprisingly light and self-lubricating, ideal for light plastics or paper, yet they deform under heavy impact and are quickly scored by sharp metal shards.
Plate geometry is another lever that influences long-term performance. Open-aperture plates allow small fragments and liquids to fall through, preventing build-up that could jam the feeder, but they also risk contaminating the return strand and surrounding floor. Closed plates create a solid trough that contains every drop of corrosive leachate, yet they can trap stringy film and force operators to stop for manual cleaning. Many plants now adopt a hybrid solution: closed plates in the first third of the feeder to catch drips, followed by open plates further downstream where the material is drier and more homogeneous. This design balances containment with self-cleaning, reducing daily maintenance hours without a significant cost penalty.
Drive System Design: Optimising Motor, Gearbox and Inverter Synergy
Powertrain selection is less about picking the biggest motor and more about matching torque curves to the exact load profile. Servo motors shine when precise speed control is required, for example when feeding a four-shaft shredder that demands a steady 3 % speed tolerance. Their closed-loop encoders can drop to 5 % rated speed without losing torque, making them ideal for variable recipes. By contrast, asynchronous (induction) motors deliver brute-force torque at a lower purchase price and are perfectly adequate for bulk RDF lines that run at a single speed. A side-by-side energy audit shows that servo systems consume 8–12 % less electricity at partial loads, but the inverter and encoder add complexity and a higher failure rate in dusty environments.
The gearbox is often the hidden hero—or villain—of the drive chain. Alloy-steel gears, hardened to 58 HRC, carry three times the fatigue life of cast-iron equivalents under shock loads, but they also double the initial cost. Cast-iron remains acceptable for steady, low-impact feeds such as sorted paper bales. Wherever the load is erratic, upgrading to alloy steel repays itself within two years through reduced replacement downtime. The inverter ties motor and gearbox together, providing soft-start ramps that cut mechanical stress by 30 % and offering overload protection that trips before the chain snaps. Modern inverters also log torque spikes, turning the feeder into a diagnostic tool that warns operators of upstream blockages before they become costly jams.
Lubrication & Maintenance Design: Cutting Lifetime Cost
Automatic central lubrication systems dispense measured doses of grease to every pin and roller at programmable intervals, eliminating the daily walk-around with a manual gun. In high-dust applications, this alone can save 1.5 labour hours per shift and extend chain life by 20 %. Sensors monitor pressure and temperature, alerting maintenance teams via the plant’s SCADA if a line clogs or a bearing overheats. Manual lubrication, while cheaper upfront, relies on human diligence; skipped cycles quickly translate into galling and elongation that force premature chain replacement.
Sealing technology determines how much abrasive dust reaches the lubricated joints. Labyrinth seals, machined with precise internal grooves, create a tortuous path for particles without contacting the shaft, lasting years with minimal wear. Rubber lip seals provide superior water exclusion, yet the lips can harden and crack in extreme temperatures. For plants handling outdoor construction debris, a dual-seal arrangement—labyrinth plus rubber—offers the best of both worlds. Finally, standardising chains, rollers and sprockets across the entire fleet allows spare parts to be swapped in minutes, turning scheduled maintenance into a predictable pit-stop rather than a day-long shutdown.
Supplier Evaluation: End-to-End Due Diligence from Technical Strength to After-Sales Support
Core content: The selection of suppliers should comprehensively consider industry experience, after-sales capabilities and cost-effectiveness to avoid project delays or equipment performance substandard due to insufficient supplier qualifications.
Track Record & Case Validation
When you invite a supplier to quote, the first filter is proven experience. Ask for reference lists that show at least three installations handling the same waste stream—be it e-waste, construction debris or post-consumer plastics—and insist on site visits or live video walkthroughs. A supplier who can speak fluently about rotor-tip speeds, chain-plate hardening grades and dust-extraction details is usually one who has lived through the real-world surprises of mixed waste. Conversely, glossy brochures without verifiable case studies often hide hidden change-order costs later.
Beyond the number of projects, look for genuine customisation depth. Can the vendor widen the belt by 300 mm without redesigning the frame? Will they alter the incline angle or add a magnetic head-pulley on request? True engineering teams keep parametric CAD models ready, allowing dimensions, drives and liners to be adjusted in days, not weeks. This agility shortens your delivery schedule and reduces the risk of a one-size-fits-all compromise that later erodes throughput.
After-Sales Service: Rapid Response & Spare-Parts Security
Even the best conveyor will eventually need bearings, chains or a new PLC module. Evaluate how the supplier organises support: do they maintain regional depots with 24-hour hot-swap stocks, or do parts travel across continents? A mature service network can dispatch a technician and critical spares within the same shift, turning a potential two-day shutdown into a two-hour adjustment. Ask for the average mean-time-to-repair (MTTR) statistics and cross-check with existing users.
Training is the second pillar of reliable after-sales care. Reputable vendors bundle operator certification and annual refreshers into the contract, teaching staff how to spot early wear patterns and safely lock out equipment. Remote diagnostics—via secure VPN and live sensor feeds—allow engineers to troubleshoot alarms without boarding a plane, shrinking response times and cutting travel costs. A supplier who invests in such transparent support channels is signalling a long-term partnership rather than a one-off sale.
Cost & Value Balance: Up-Front Price versus Lifetime Return
The cheapest quotation rarely delivers the lowest total cost. Break the offer into transparent blocks: equipment, transport, installation, commissioning and warranty extensions. Then request a five-year operational cost model that includes electricity (kWh per tonne), annual chain replacement kits and expected labour hours. A feeder fitted with energy-efficient IE4 motors and automatic grease systems might list ten percent higher, yet save more than its premium in power and maintenance over the first forty thousand operating hours.
Finally, consider residual value. High-grade alloy plates and modular frames retain up to thirty-five percent of their original price on the second-hand market, whereas light-duty mild-steel versions often become scrap metal. Factor this resale or redeployment value into your net-present-value calculation; it can shorten the payback period by several months and make future capacity expansions far less capital-intensive.
Industry Trends: Smart & Modular Solutions Point the Way Forward
Core content: With the development of the waste treatment industry in the direction of efficiency and low carbon, the chain plate feeder needs to integrate intelligence (Internet of Things, big data) and modular design to meet the needs of future technology upgrades and capacity expansion.
Smart Upgrades – IoT & Big Data in Action
Modern feeders are no longer passive conveyors; they are becoming data-rich nodes in a connected plant. Embedded load cells, speed encoders and infrared temperature probes stream real-time values to a cloud dashboard. Operators can watch the exact mass flow in tonnes per hour and detect subtle belt slowdowns before they cascade into a full jam. When the system notices an unusual vibration signature, it flags a potential bearing fault days in advance, allowing a planned maintenance window instead of an emergency shutdown.
The same sensor cloud also talks to adjacent equipment. When the downstream Shredder reports a sudden rise in motor torque, the feeder automatically reduces belt speed for a few minutes, giving the cutters time to clear the overload. Once the torque falls back within safe limits, the feeder smoothly ramps up again. This closed-loop handshake cuts idle time, evens out power demand and ultimately shaves several percentage points off the electricity bill.
Modular Design – Adapting Quickly to Project Changes
Markets shift, regulations tighten and waste streams evolve. Modular feeders answer that reality with bolt-together frames that can be lengthened or shortened in a single shift. Instead of cutting and re-welding steel, technicians simply unbolt a mid-section, insert an extension module, and torque the flanges back to specification. The same philosophy applies to auxiliary functions: pre-drilled mounting plates and universal hydraulic ports allow a magnetic separator or a bag-opener drum to be clipped on without redesigning the entire line.
Standardised rollers, chains and sprockets further simplify life. A plant that runs three identical feeders can keep one shared box of spares instead of stocking unique parts for every machine. When a roller in feeder A fails, the replacement from feeder B slots straight in, keeping downtime measured in minutes rather than days.
Green Manufacturing – Low-Carbon Materials & Energy-Saving Tech
Manufacturers are steadily increasing the share of recycled steel in new feeders. Using scrap-based alloy reduces embodied CO₂ by up to 70 % compared with virgin ore, while advanced heat-treatment techniques restore mechanical properties to the same level. End-of-life chains are collected, re-melted and rolled into fresh plates, closing the loop and aligning with circular-economy targets.
Energy recovery adds another layer of sustainability. Regenerative braking inverters capture the kinetic energy of a decelerating belt and feed it back into the plant grid. In a 24-hour operation, this can offset 5–8 % of total power consumption. Combined with IE4 motors and eco-certified control panels, the entire feeder package meets CE and UL environmental standards, easing permitting and boosting corporate ESG scores.
Common Pitfalls & How to Avoid Them
Core content: Combined with actual cases, analyze high-frequency errors in selection, maintenance, and operation, and provide practical solutions to help users avoid risks such as cost overruns and low efficiency.
Pitfall 1 – Over-Specifying and Over-Paying
A European recycling plant once specified marine-grade stainless-steel plates for a stream composed mainly of PET bottles. The corrosion risk was negligible, yet the premium added forty percent to the purchase price. The lesson is simple: map the actual chemical exposure, particle size and impact energy, then choose the lowest grade that still meets those conditions. A mild-steel plate with a 3 mm polyurethane coating often outperforms an over-qualified stainless option at half the cost.
Pitfall 2 – Neglecting Maintenance and Shortening Life
In a high-volume site, a single missed lubrication cycle can halve chain life. A North-American operator experienced a catastrophic chain break after eighteen months of skipped greasing, leading to repairs equal to fifteen percent of the original machine value. Establishing a preventive schedule—every 500 operating hours or three months, whichever comes first—turns a potential crisis into a routine five-minute task.
Pitfall 3 – Mismatched Speed and Interface
Speed misalignment is surprisingly common. A feeder belt delivering 30 t/h to a Shredder designed for 20 t/h will inevitably overflow the hopper and stall the rotor. The remedy is a system-level commissioning test where both vendors run the machines in tandem, logging torque, current and belt load. Minor tweaks—slowing the belt by ten percent or raising the hopper lip by 200 mm—usually solve the problem before full production starts.
