Improve Nylon Fiber Purity in Carpet Recycling with Dual-Shaft Shredder Technology

The global challenge of post-consumer carpet disposal represents both a significant environmental burden and a substantial resource opportunity, with millions of tons discarded annually. This complex composite material, primarily consisting of valuable nylon face fibers bonded to polypropylene backing with adhesive, resists traditional recycling methods. This article provides a detailed examination of how dual-shaft solid waste shredders are engineered to address this specific challenge. It explores the material science of carpet, the unique "shear-tear" mechanism of dual-shaft machines, the critical operational parameters for fiber liberation, the integrated sorting technologies for purification, and the complete economic model for a viable recycling operation. The analysis demonstrates how this targeted mechanical processing forms the foundational step in transforming carpet waste into a high-purity, high-value raw material stream, directly supporting the principles of a circular economy and advanced resource recovery.

The Carpet Recycling Imperative: Unlocking the Value of Nylon Fibers

Post-consumer carpet constitutes a major and persistent waste stream, with an estimated 3 to 4 million tons generated in North America and Europe each year. This material is a designed composite, typically featuring face fibers of nylon 6 or nylon 6,6 for durability and aesthetics, which are tufted or woven into a primary backing and then secured by a secondary backing of polypropylene or latex-filled calcium carbonate. This layered construction, bound by strong adhesives, is engineered for performance, not for end-of-life disassembly. Traditional disposal routes, primarily landfilling and incineration, result in the permanent loss of valuable petrochemical-based materials and contribute to greenhouse gas emissions, creating a pressing need for advanced recovery solutions.

The core economic driver for carpet recycling is the recovery of the nylon face fibers. Virgin nylon production is energy-intensive, relying on crude oil derivatives. High-purity recycled nylon, or rNylon, commands a significant market premium over mixed plastic regrind because it can be reintegrated into demanding applications. These applications include automotive parts, carpet backing, athletic wear, and engineering plastics, where material consistency and performance are critical. The primary obstacle to accessing this value is the efficient and clean separation of the nylon from the backing matrix without degrading the polymer. Achieving high separation purity is therefore not merely a technical goal but the fundamental economic lever determining the profitability and sustainability of the entire recycling endeavor.

Material Composition and Construction of Carpet

Carpet is a sophisticated multi-laminate structure. The face yarns, typically nylon, provide the wearing surface and aesthetic qualities. These yarns are anchored into a primary backing, often a polypropylene or polyester woven scrim. A thick layer of adhesive, usually a styrene-butadiene latex compound filled with calcium carbonate, then bonds a secondary backing to the primary backing, locking the tufts in place and providing dimensional stability. This secondary backing is frequently a polypropylene or polyvinyl chloride sheet. The result is a material where the target polymer (nylon) is intimately and robustly entangled with contaminant polymers (polypropylene, latex) and inorganic fillers, creating a formidable separation challenge.

Technical Barriers in Mechanical Fiber Recovery

Several interrelated technical barriers complicate nylon recovery. The adhesive bond is specifically formulated to withstand mechanical stress, making clean fiber detachment difficult. The densities of nylon and polypropylene are very similar, ruling out simple sink-float separation in water. Mechanical size reduction processes, if not carefully controlled, can cut or melt the nylon fibers, reducing their length and tensile strength, which directly diminishes their value for subsequent melt-spinning or composite applications. Furthermore, contamination from dirt, sand, and other debris embedded in the carpet can accelerate equipment wear and introduce impurities into the final product stream.

Market Specifications for Recycled Nylon

The end-market for recycled nylon dictates stringent quality specifications. For fiber-to-fiber recycling, the material must maintain sufficient polymer integrity and fiber length to be successfully re-melted and extruded. Color consistency is often a major concern, as mixed post-consumer carpet yields a grey or off-white material. For engineering plastic applications, the melt flow index, residual contamination levels, and mechanical properties such as tensile strength and impact resistance must meet precise standards. These requirements translate directly into a need for a recycling process that maximizes polymer purity and minimizes thermal and mechanical degradation.

Limitations of Conventional Recycling Approaches

Historically, attempts to recycle carpet often resulted in downcycling. Simple granulation of whole carpet produces a heterogeneous mix of polymers and fillers. This mixed regrind has limited applications, typically being molded into low-value products like plastic lumber or parking stops, a process that does not recover the inherent value of the nylon. Alternatively, pyrolysis or gasification can recover energy but destroy the material. These approaches fail to achieve the high-value material recovery necessary for a true circular economy model, creating a clear demand for a disassembly-focused, rather than a destruction-focused, technology pathway.

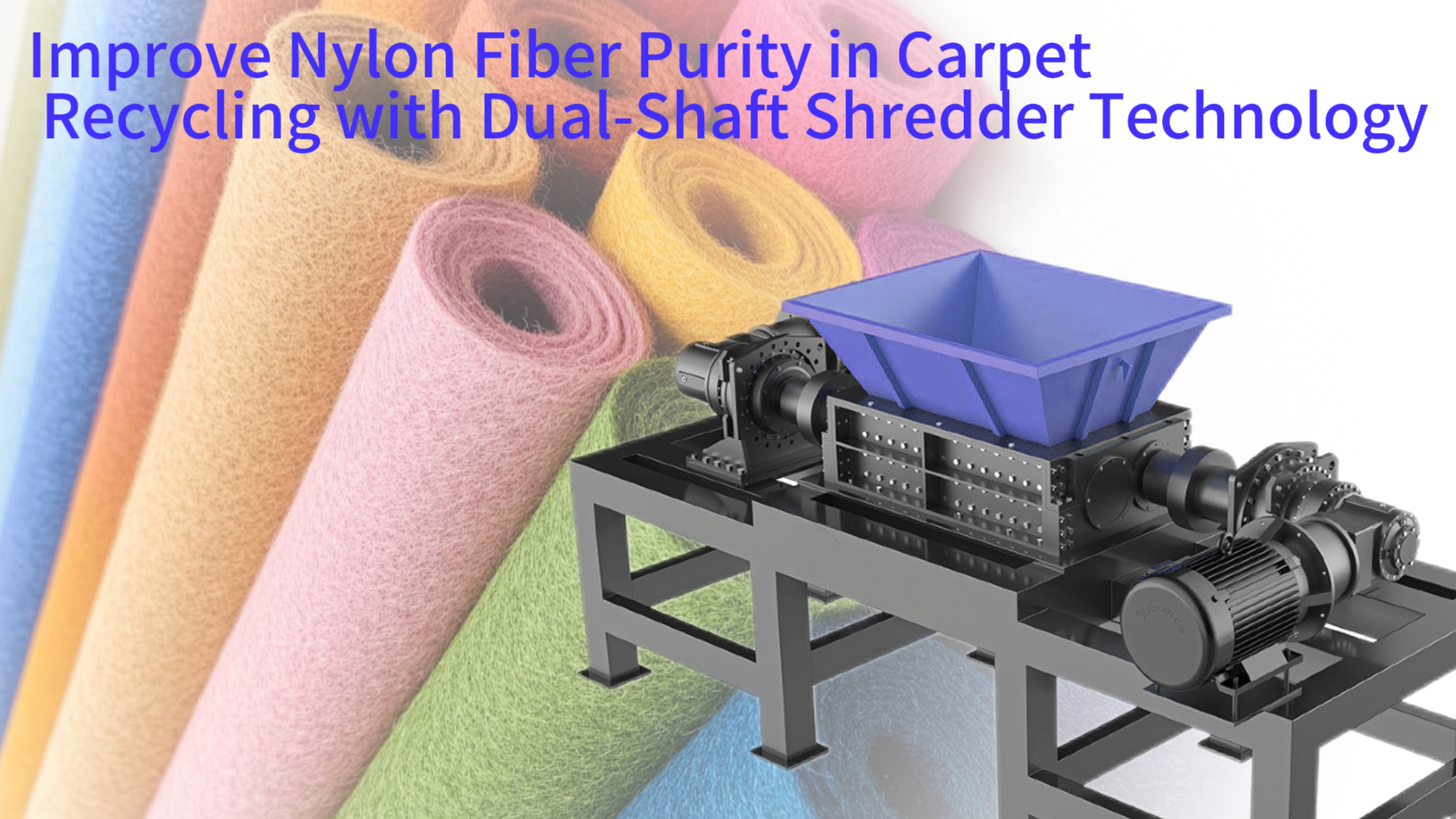

The Dual-Shaft Shredder: Engineered for Delamination and Fiber Liberation

The solid-waste-double-shaft-shredder is uniquely suited for the initial size reduction of bulky, tangled, and composite materials like carpet. Its design centers on two parallel, intermeshing rotors that counter-rotate at low speeds, typically between 20 to 60 revolutions per minute. Each rotor is fitted with a series of discs featuring hooked or star-shaped cutting profiles. As material is fed into the hopper, these rotating hooks engage, grab, and progressively draw the carpet into the cutting zone. The primary action is not impact or hammering, but a controlled combination of shear, tensile tearing, and ripping forces that work to pull the composite layers apart along their natural planes of weakness.

This "gentle shredding" mechanism is critical for fiber recovery. Compared to high-speed hammer mills or single-shaft rotary shear shredders, the dual-shaft system applies force more gradually and over a larger area of the material. The intermeshing action creates a scissoring effect that shears the carpet, while the hooked design applies sustained tensile stress. This preferentially ruptures the adhesive bonds between the face fiber tufts and the backing, and tears the polypropylene backing sheet, without aggressively chopping the nylon fibers themselves. The result is an output material where the nylon fibers are largely liberated as discrete, elongated bundles, mixed with shredded polypropylene backing fragments and liberated filler. This output characteristic is foundational for efficient downstream sorting.

Rotor Design and Cutting Mechanics

The heart of the dual-shaft shredder's effectiveness lies in its rotor and cutter design. The rotors are massive, high-inertia components driven by high-torque hydraulic or electric motors, ensuring they can maintain rotational force even when encountering tough, resistant sections of material. The cutters are typically made from high-grade alloy tool steel, such as D2 or H13, and are often heat-treated for hardness and wear resistance. Their hooked geometry is crucial; it ensures positive engagement with the fibrous, flexible carpet, preventing it from simply riding on top of the rotors. The precise intermeshing clearance between the opposing cutters, often adjustable, determines the maximum particle size of the shredded backing material while allowing longer fibers to pass through without being cut.

Preserving Fiber Morphology Through Controlled Force

The operational philosophy of the dual-shaft shredder in this application is delamination, not comminution. By operating at low rotational speeds, the kinetic energy imparted to the material is minimized, reducing the heating and melting of thermoplastic fibers. The primary failure mode induced in the carpet is adhesive bond failure and backing material tearing. Studies of output material from optimally configured shredders show that a significant proportion of nylon fibers retain lengths of several centimeters, which is essential for maintaining their value. This contrasts sharply with processes that produce short, milled fibers suitable only for filler applications, highlighting the importance of machine selection for outcome-based recycling.

Feed System and Throughput Considerations

Handling whole carpet rolls or large, irregular pieces requires a robust feed system. Many industrial dual-shaft shredders are equipped with a hydraulic ram feeder that actively pushes material into the cutting rotors, ensuring a consistent feed rate and preventing bridging or uneven loading. The hopper opening is designed to be wide and deep to accommodate large, bulky items. Throughput for carpet shredding can range from 1 to 5 tons per hour depending on the machine size, motor power, and the specific density and condition of the feedstock. This balance between gentle processing and industrial-scale throughput is a key advantage of the technology.

Economic Advantages Over Single-Stage Processing

While a single-stage grinding process might seem simpler, it often proves less economical for high-value fiber recovery. A hammer mill, for example, consumes more energy per ton to reduce the material to a fine powder, increases wear on components due to abrasive fillers, and creates a homogeneous mixture that is exponentially more difficult and expensive to separate. The dual-shaft shredder, by performing a targeted delamination, produces a heterogeneous output where materials are already partially segregated by shape and size. This dramatically reduces the energy and complexity required in subsequent sorting stages, leading to lower overall operating costs and a higher-quality, more marketable final product, justifying the initial capital investment.

Optimizing the Shredding Process for Maximum Purity and Yield

To achieve the highest possible nylon fiber purity and yield, the operation of the dual-shaft shredder must be carefully tuned. This optimization involves a multifaceted approach addressing machine parameters, feedstock preparation, and integration with material handling. The central objective is to configure the machine to apply just enough mechanical force to separate the carpet layers completely, while minimizing any action that cuts the nylon fibers or generates excessive heat that could cause polymer melting or degradation. This fine-tuning is an iterative process, often requiring initial trials with representative feedstock to establish baseline settings for blade gap, rotor speed, and screen size.

A consistent and appropriately prepared feed stream is equally critical. Carpet rolls should be pre-cut into manageable sections to ensure steady feeding and prevent machine overload. Removing heavy non-carpet contaminants, such as wood or metal, before shredding protects the cutters from damage. Furthermore, maintaining a consistent feed rate prevents the shredder from running empty or becoming choked, both conditions that lead to inefficient processing and increased wear. The integration of a Programmable Logic Controller (PLC) allows for the monitoring of motor amperage, providing a real-time indicator of load that can be used to automate feed control and prevent jams, creating a stable and optimized processing environment.

Precision Adjustment of Cutting Clearance and Speed

The tip clearance between the intermeshing cutters is perhaps the most critical adjustable parameter. A wider gap allows longer fiber bundles to pass through but may leave larger, inadequately torn pieces of backing. A narrower gap creates a finer shred of the backing material but increases the risk of cutting the nylon fibers. An optimal setting, often between 10mm and 25mm depending on carpet construction, must be found. Similarly, rotor speed must be balanced; too high a speed increases cutting action and heat, while too low a speed may reduce throughput and pulling force. The ideal setting typically lies in the lower range of the machine's capability, prioritizing torque over speed.

Screen Selection and Particle Size Management

The discharge screen, or grate, located beneath the rotors, controls the maximum size of particle that can exit the cutting chamber. For carpet processing, a screen with relatively large apertures (e.g., 50mm to 100mm) is commonly used. This allows liberated fiber bundles and appropriately sized backing pieces to exit quickly, preventing them from being over-processed in the chamber. The goal is not to achieve a final, uniform particle size at this stage, but rather to produce an output that is optimally sized for the next stage in the process, which is usually a combination of screening and air classification to separate fibers from backing chips.

Tooling Material and Wear Management for Abrasive Feedstock

Carpet is an abrasive material due to the mineral fillers (calcium carbonate) in the latex adhesive and embedded dirt. This abrasion leads to gradual wear of the cutter hooks, which in turn changes the effective cutting clearance and reduces efficiency. Using cutters made from wear-resistant materials or with replaceable tungsten carbide tips extends service life. Implementing a scheduled rotation and maintenance program for the cutters ensures consistent performance. Monitoring power consumption can serve as an indirect indicator of blade wear, as dull blades require more energy to process the same amount of material.

Integrated Dust Control for Health and Product Recovery

The shredding process generates dust consisting of fine mineral filler and short fiber fragments. An integrated dust collection system is essential. This system, typically a cyclone separator followed by a baghouse or cartridge filter, serves dual purposes. It protects operator health by removing airborne particulates from the work environment, and it captures potentially valuable fine nylon fibers that would otherwise be lost. This collected "fluff" may have its own market as a low-grade filler or can be analyzed for potential recovery, contributing to the overall material yield of the operation.

Advanced Sorting Technologies for High-Purity Nylon Recovery

Following the primary shredding stage, the liberated but mixed material stream must undergo a series of separation steps to isolate the nylon fibers. This purification process leverages the differences in physical properties between nylon fibers, polypropylene chips, and filler dust that were created or enhanced by the dual-shaft shredder. A typical sorting line employs a sequence of technologies, each targeting a specific type of contaminant. The order and configuration of these technologies are designed to remove the easiest contaminants first, progressively refining the stream toward the target purity of 95% to 99% nylon, which is required for most high-value applications.

The initial step often involves size-based screening. A trommel screen or vibrating deck screen with carefully selected mesh sizes separates the longer nylon fiber bundles from the smaller, more granular pieces of shredded polypropylene backing and filler agglomerates. This dry, mechanical separation is highly efficient and requires minimal energy. The oversized fraction, rich in nylon fibers, then proceeds to the core separation stage, which exploits differences in density and aerodynamic properties. Here, air classifiers or aspirators create an upward air current. The lighter, less dense nylon fibers are carried upward and captured, while the heavier polypropylene fragments and any remaining dense contaminants fall through for collection as a separate stream.

Air Classification for Density-Based Separation

Air classifiers are pivotal for separating materials with similar sizes but different densities. In a vertical air column, a controlled upward airflow is established. The shredded carpet mixture is introduced into this column. The terminal velocity of a particle in an airstream is a function of its density, size, and shape. Nylon fibers, with their low bulk density and elongated shape, have a low terminal velocity and are lifted by the airflow. Denser, more compact polypropylene chips have a higher terminal velocity and fall counter to the airflow. By precisely tuning the air velocity, operators can achieve a highly selective separation, producing a nylon-rich "lights" fraction and a polypropylene-rich "heavies" fraction. This technology is effective because the dual-shaft shredder produces materials with distinct shapes that respond predictably to aerodynamic forces.

Electrostatic Separation for Final Polishing

For applications demanding extreme purity, or to handle materials where density separation is insufficient, electrostatic separation provides a final polishing step. This technology exploits the difference in triboelectric charging behavior between polymers. When two different materials are rubbed together, one becomes positively charged and the other negatively charged. In a common configuration, the mixed material is fed onto a grounded rotating metal drum. An electrode with a high-voltage charge (e.g., 20-40 kV) is positioned near the drum. Particles charged opposite to the electrode are attracted to it and pulled off the drum's trajectory, while similarly charged particles are repelled and continue on a different path. Nylon and polypropylene occupy opposite ends of the triboelectric series, making them ideal candidates for this high-purity separation method.

Automated Sorting and Quality Control Integration

Modern sorting lines incorporate automation and sensing for quality control. Near-Infrared (NIR) sensors can be positioned on conveyor belts to scan the material stream in real-time. These sensors can identify the chemical signature of nylon versus polypropylene. This data can be used for two purposes: first, to provide real-time feedback on the purity of the output stream, and second, to actuate high-speed air jets that precisely eject contaminant particles from the stream, a technology known as optical sorting. This creates a closed-loop control system where the performance of the entire shredding and sorting line can be monitored and optimized continuously, ensuring consistent output quality and maximizing the recovery of valuable material.

Comprehensive Process Flow for Maximum Efficiency

A well-designed carpet recycling facility integrates these technologies into a cohesive process flow. A representative flow is: 1) Pre-sorting and manual removal of gross contaminants. 2) Size reduction via dual-shaft shredder. 3) Trommel screening to remove fines and oversize. 4) Air classification to separate nylon fibers from polypropylene chips. 5) Optional electrostatic separation for final purification of the nylon stream. 6) Baling or densification of the purified nylon for shipment. The polypropylene stream and filler stream are also collected for their own recycling or disposal pathways. This multi-stage approach, initiated by the tailored action of the dual-shaft shredder, ensures each separation technology operates at its highest efficiency, culminating in the production of a commodity-grade recycled polymer.

Economic Viability and Environmental Impact of the Technology

The financial success of a carpet recycling operation based on dual-shaft shredding and advanced sorting depends on a clear understanding of both costs and revenue streams. Capital expenditure is significant, encompassing not only the shredder but also the complete sorting line, material handling conveyors, dust collection, and facility infrastructure. Operational costs include electricity, labor, maintenance, tooling replacement, and transportation. However, these are offset by multiple revenue sources. The primary revenue comes from the sale of purified nylon flake or pellet, which can command 50% to 80% of the price of virgin nylon, depending on color and quality. Secondary revenue is generated from the sale of recovered polypropylene and, in some cases, the calcium carbonate filler.

The business case is strengthened by external economic factors. Landfill tipping fees continue to rise in many regions, making diversion financially attractive. Extended Producer Responsibility (EPR) schemes and landfill bans for specific waste types are being implemented in various jurisdictions, creating regulatory pressure for recycling. Furthermore, brands and manufacturers are increasingly seeking recycled content to meet sustainability goals and consumer demand, creating a stable and growing market for high-quality recycled nylon. A detailed financial model typically projects a payback period of 3 to 7 years for a commercial-scale operation, with profitability highly sensitive to the achieved purity and yield of the nylon output and the stability of feedstock supply.

Quantifying the Environmental Benefits of Fiber Recovery

The environmental argument for this technology is compelling. Life Cycle Assessment (LCA) studies consistently show that recycling nylon from carpet offers substantial environmental savings compared to producing virgin nylon from crude oil. The production of recycled nylon granulate requires only about 10% of the energy needed for virgin nylon production. This translates directly into a reduction of greenhouse gas emissions, often by 70% or more per kilogram of material. Furthermore, recycling diverts bulky, non-biodegradable waste from landfills, conserving land space and avoiding methane emissions from decomposing organic matter that may be present in soiled carpet. The recovery of the material also reduces the demand for fossil feedstocks, contributing to resource conservation.

Market Dynamics and Risk Management for Recycled Nylon

The market for recycled nylon is dynamic and influenced by global factors. The price of virgin nylon, itself tied to oil prices, sets a ceiling for recycled material. Demand fluctuates with the economic health of downstream industries like automotive and textiles. To mitigate these risks, successful operators often pursue multiple strategies. They may seek long-term offtake agreements with major users to guarantee a baseline price and volume. They might also invest in further processing, such as compounding or pelletizing, to move up the value chain and differentiate their product. Achieving third-party certifications like the Global Recycled Standard (GRS) can open doors to premium markets, particularly in apparel and consumer goods, providing a measure of price stability and brand recognition.

The Role of Policy and Corporate Sustainability Goals

Government policy is a powerful driver for advanced recycling infrastructure. Bans on landfilling carpet are in effect in several U.S. states and European countries, mandating alternative management. EPR laws place the financial and operational responsibility for end-of-life product management on manufacturers, incentivizing them to support or establish recycling channels. Simultaneously, major corporations have made public commitments to increase the use of recycled content in their products. For example, automotive and electronics manufacturers have specific targets for recycled polymers. This confluence of regulatory push and corporate pull creates a favorable and increasingly stable economic environment for investments in technologies like dual-shaft shredding that enable high-quality material recovery.
