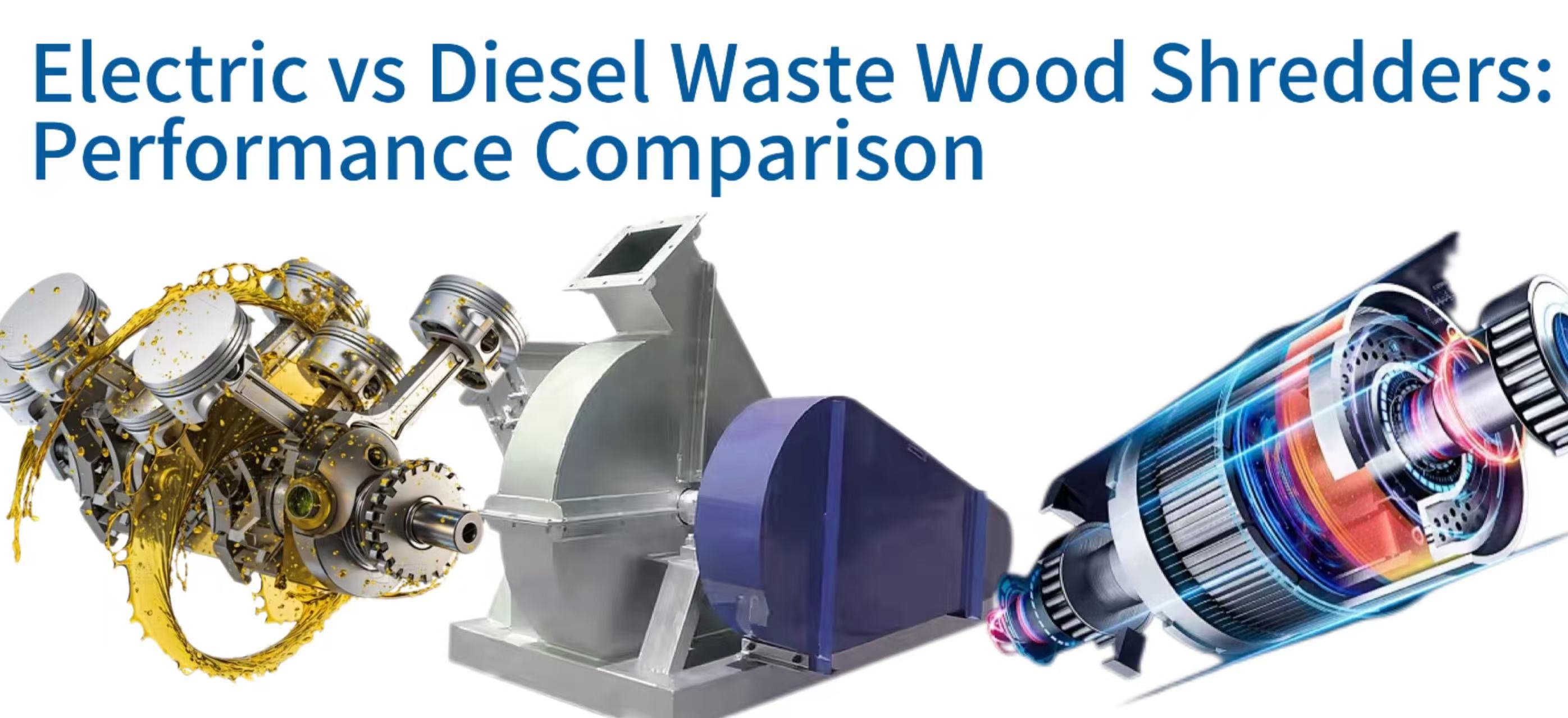

This analysis compares electric and diesel waste wood shredders across performance metrics including torque, efficiency, and operational costs. Discover how power source selection impacts environmental compliance, maintenance needs, and suitability for industrial or residential applications.
Fundamental Power System Differences
Electric shredders convert electrical energy directly into mechanical rotation with 90-95% efficiency, while diesel units transform chemical energy through combustion at 35-45% thermal efficiency. This core distinction creates divergent operational characteristics: electric motors deliver instant torque from zero RPM, whereas diesel engines require buildup to peak power. The energy pathways differ fundamentally - electric systems use conductors and magnetic fields, while diesel relies on compression ignition and mechanical linkages.
Modern electric shredders employ regenerative braking that captures kinetic energy during deceleration, converting it back to electricity. Diesel systems dissipate this energy as heat through braking resistors. This efficiency gap widens under partial loads, where electric drives maintain near-peak efficiency while diesel units consume disproportionate fuel at lower RPMs.
Electric Power Transmission Pathway
Electric shredders follow a simplified energy path: grid power → variable frequency drive (VFD) → motor → shredding mechanism. This direct drive eliminates multiple energy conversions, reducing losses to less than 5%. Advanced systems incorporate power factor correction to minimize reactive power waste, especially important in facilities with multiple electric machines.
The absence of mechanical transmission components (clutches, gearboxes) in direct-drive electric shredders reduces maintenance points. Energy flows through copper windings rather than hydraulic fluid or drive belts, creating a cleaner operational environment with fewer leak points.
Diesel Combustion Energy Conversion
Diesel shredders undergo complex energy transformations: chemical energy in fuel → thermal energy through compression ignition → mechanical energy via piston movement → rotational force through transmission. Each conversion stage incurs losses - approximately 30% as exhaust heat, 30% as coolant heat, and 5% as friction, leaving only 35% for useful work.
Turbocharging attempts to reclaim some exhaust energy, but parasitic losses from auxiliary systems (cooling pumps, alternators) further reduce net output. The multi-stage process creates more potential failure points than electric systems but offers fuel-based independence from grid infrastructure.
Variable Frequency Drive Advantages
VFD technology revolutionizes electric shredder performance by precisely controlling motor speed and torque. By adjusting input frequency and voltage, operators can maintain optimal shredding RPM regardless of load variations. This prevents over-revving during light loads and provides soft-start capability that reduces mechanical stress during initial engagement.
The continuous torque adjustment enables consistent particle size distribution even with variable wood density. VFDs also provide data-rich operation monitoring, allowing precise energy consumption tracking per ton processed - a feature unavailable in mechanical diesel systems.
Critical Performance Comparison
Electric shredders deliver 100% torque instantly at startup, enabling rapid processing of challenging materials like knotty wood or green logs. Diesel units require ramp-up time to reach peak torque, creating processing delays. However, diesel engines maintain power better under continuous heavy loads, while electric motors may require cooling cycles during extended high-demand operation.
Speed control precision differs significantly: electric systems adjust within ±1 RPM, critical for uniform particle size in applications like biomass fuel production. Diesel shredders typically vary ±25-50 RPM under changing loads, resulting in less consistent output gradation.
Instant Torque Characteristics
Electric double-shaft shredders leverage electromagnetic field interactions to generate maximum torque the moment power engages. This allows immediate processing of full-capacity loads without gradual feeding. The characteristic is particularly valuable when handling irregular materials like root balls or demolition wood where initial resistance varies unpredictably.
Permanent magnet motors enhance this advantage, producing up to 300% starting torque compared to nominal rating. This capability eliminates the need for ram feeders in many applications, simplifying machine design and reducing footprint.
Diesel Load Response Limitations
Conventional diesel shredders experience noticeable power decay when encountering sudden load increases. The mechanical governor requires 2-4 seconds to adjust fuel injection rates, causing temporary RPM drops. Modern common-rail systems reduce but don't eliminate this lag. Under continuous heavy loads, diesel units may lose 5-8% rated power due to thermal derating as coolant temperatures rise.
High-ambient temperatures exacerbate this issue, with power dropping approximately 1% per 3°C above 25°C. Altitude effects are more pronounced than in electric systems - diesel shredders lose about 3% power per 300 meters elevation gain due to reduced air density.
Operational Scenario Suitability
Electric shredders excel in urban settings and fixed facilities with reliable grid power, offering quiet operation essential for noise-sensitive areas. Diesel units dominate remote locations like forestry operations and disaster cleanup sites where electrical infrastructure is absent. The choice fundamentally depends on mobility requirements versus operational cost considerations.
Climate adaptability varies: electric systems perform consistently from -20°C to 50°C with proper insulation, while diesel engines face cold-start challenges below 0°C and require derating above 40°C. At high altitudes, electric shredders maintain full power while diesel units need turbocharger adjustments to compensate for thin air.
Grid Dependency Considerations
Electric shredders require stable 3-phase power, with voltage fluctuations beyond ±10% potentially damaging motors. Facilities without sufficient transformer capacity may need expensive upgrades. However, once installed, electric systems provide predictable operating costs unaffected by fuel price volatility.
For continuous 24/7 operations, electric power proves more reliable than refueling cycles. Large industrial shredders may consume 300-500kW, necessitating dedicated substations but eliminating fuel storage and handling requirements.
Remote Area Mobility Advantages
Diesel-powered single-shaft shredders offer complete operational independence, making them ideal for temporary sites like land clearing projects. Integrated fuel tanks provide 8-12 hours of runtime without refueling. This autonomy comes at the cost of higher noise levels (95-105dB vs 80-85dB for electric) and exhaust emissions requiring management.
Mobile configurations often combine shredders with diesel generators, creating hybrid flexibility. However, this setup suffers from compounded efficiency losses - generator efficiency (85-90%) plus shredder motor efficiency (90-95%) yields 77-85% overall versus 93-98% for direct-grid electric systems.
Lifecycle Economic Analysis
Electric shredders command 15-25% higher initial purchase prices but deliver 40-60% lower operating costs over a 10-year lifecycle. The economic crossover typically occurs at 1,500-2,000 operational hours, after which electric units become more economical. This calculation varies significantly by region due to electricity and diesel price differentials.
Maintenance costs diverge dramatically: electric shredders require mainly bearing lubrication and occasional VFD servicing, while diesel units need regular oil/filter changes, injector cleaning, exhaust treatment maintenance, and eventual overhaul. These factors must be modeled against projected usage patterns for accurate ROI projections.
Energy Cost Comparison
At current U.S. rates, electric shredders consume $12-18 per ton processed versus $25-40 for diesel equivalents. This gap widens during peak electricity demand periods where smart-grid connected shredders can leverage off-peak rates. Diesel fuel costs remain more volatile, with historical price swings up to 50% annually versus 10-15% for industrial electricity.
High-efficiency electric systems can reduce energy costs by 15-20% through regenerative braking and VFD optimization. Some utilities offer demand-response incentives for interruptible operation during grid stress periods, creating additional revenue streams unavailable to diesel operators.
Maintenance Cost Factors
Diesel shredders accumulate maintenance costs 2-3 times higher than electric counterparts. Typical annual upkeep includes: engine oil changes (every 250-500 hours), fuel filter replacement (500 hours), DEF system maintenance, and cooling system servicing. Major overhauls at 10,000-15,000 hours can cost 25-40% of original equipment price.
Electric systems primarily require bearing greasing (quarterly), VFD air filter cleaning (monthly), and motor winding checks (annually). Predictive maintenance using IoT sensors further reduces unexpected downtime costs by 30-50% compared to diesel's scheduled maintenance approach.
Environmental Compliance Factors
Electric shredders produce zero direct emissions, meeting strict urban air quality standards without additional equipment. Diesel units require sophisticated after-treatment systems to comply with regulations like EU Stage V and EPA Tier 4 Final, adding 15-25% to equipment costs. These systems demand regular maintenance and consumables like Diesel Exhaust Fluid (DEF).
Noise regulations increasingly favor electric technology: residential zones typically impose 55-65 dB(A) night limits, easily met by electric shredders with acoustic enclosures. Diesel units require extensive soundproofing to meet these standards, adding weight and reducing accessibility for maintenance.
Emission Control System Costs
Modern diesel shredders incorporate multiple emission technologies: diesel particulate filters ($5,000-$15,000), selective catalytic reduction systems ($7,000-$20,000), and exhaust gas recirculation. These systems add 300-500kg to machine weight and require replacement filters/catalysts every 3,000-5,000 hours at significant cost.
DEF consumption runs 3-5% of fuel volume, creating ongoing operational expenses. System regeneration cycles consume additional fuel during active particulate filter cleaning, reducing overall efficiency by 5-8% compared to non-emission controlled engines.
Global Regulation Compliance
EU Stage V standards limit particulate matter to 0.015 g/kWh and NOx to 0.4 g/kWh - requirements only achievable with advanced after-treatment. US EPA Tier 4 Final sets similar limits but allows different technological approaches. Electric shredders inherently comply with both standards without modification, providing regulatory future-proofing as standards tighten.
Carbon taxation mechanisms increasingly disadvantage diesel operations. Several European countries impose €50-100/ton CO2 equivalent charges on industrial diesel use, while electric operations can leverage renewable energy certificates to demonstrate carbon neutrality.
Future Technology Development
Emerging power technologies promise to reshape the shredder landscape. Hydrogen fuel cells offer diesel-like mobility with water-only emissions, while advanced battery systems enable all-electric mobile units. Hybrid configurations combine the best of both technologies, using batteries for peak power and smaller diesel generators for sustained operation.
AI-driven energy management systems optimize power use in real-time, predicting load requirements based on material analysis. Wireless charging enables automated top-ups during material handling pauses, potentially eliminating manual refueling/recharging entirely.
Hydrogen Fuel Cell Applications
Prototype hydrogen-powered shredders demonstrate 45-50% electrical efficiency with rapid refueling capabilities. The technology eliminates particulate emissions and reduces NOx by 90% compared to diesel. Current limitations include hydrogen storage density (limiting runtime) and refueling infrastructure gaps, though major industrial gas suppliers are developing mobile solutions.
Fuel cell systems integrate well with electric drive trains, requiring minimal modification to existing shredder designs. The technology shows particular promise for municipal operations where hydrogen refueling can be centralized at depot facilities.
Intelligent Power Management
AI algorithms now predict shredding resistance based on wood species recognition through camera systems, pre-adjusting power delivery for optimal efficiency. Machine learning models analyze historical data to schedule maintenance before failures occur, reducing downtime by 30-40%.
These systems automatically switch between power sources in hybrid configurations, blending grid power, battery storage, and generator output for minimal cost and emissions. Real-time optimization adjusts parameters like rotor speed and feed rate based on energy pricing signals during demand-response events.
